Tips

Save images of your drawing from AutoCAD using PNGOUT or JPGOUT or BMPOUT commands. (WYSIWYG)

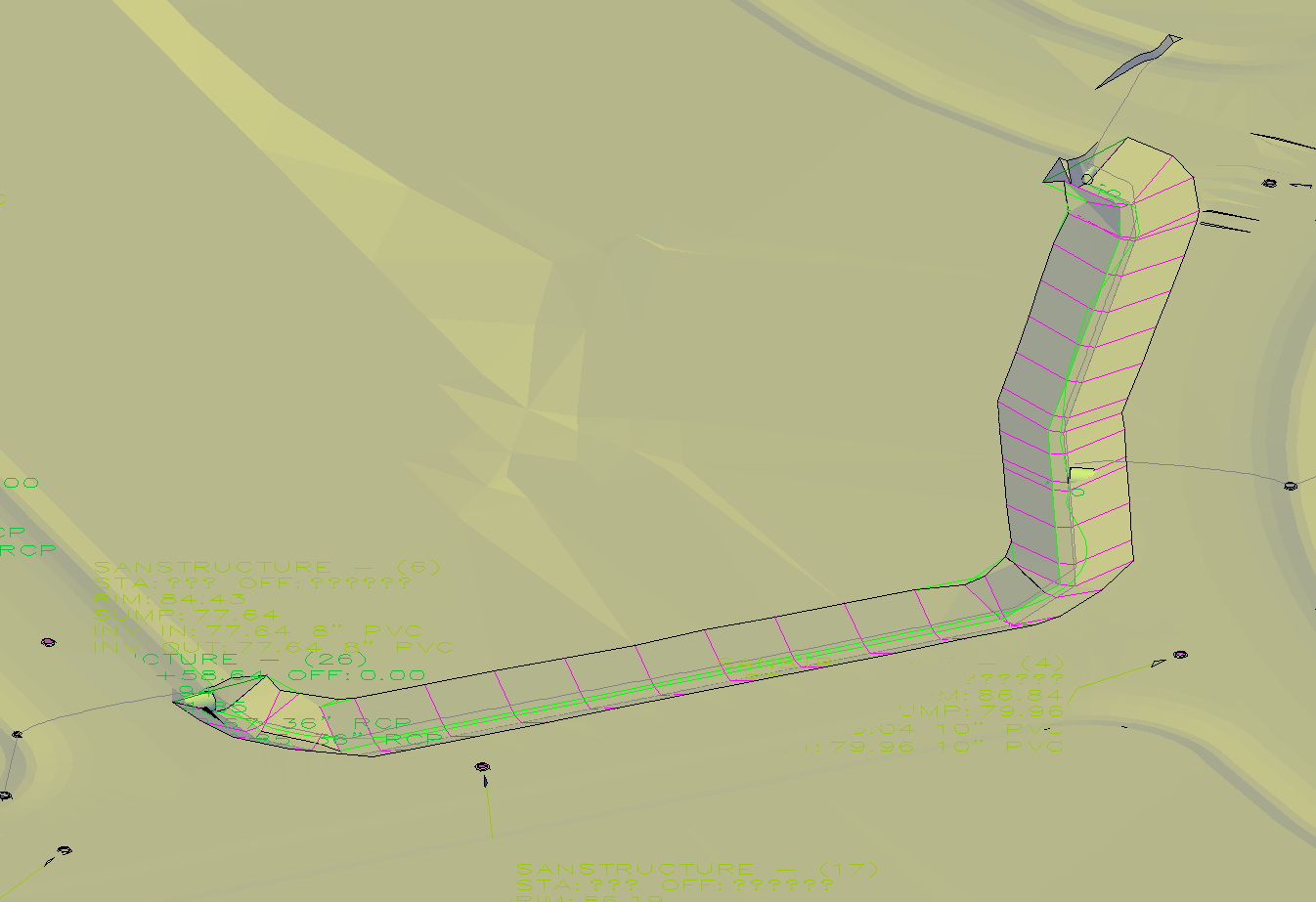

See an example of a Ditch and Pipes.

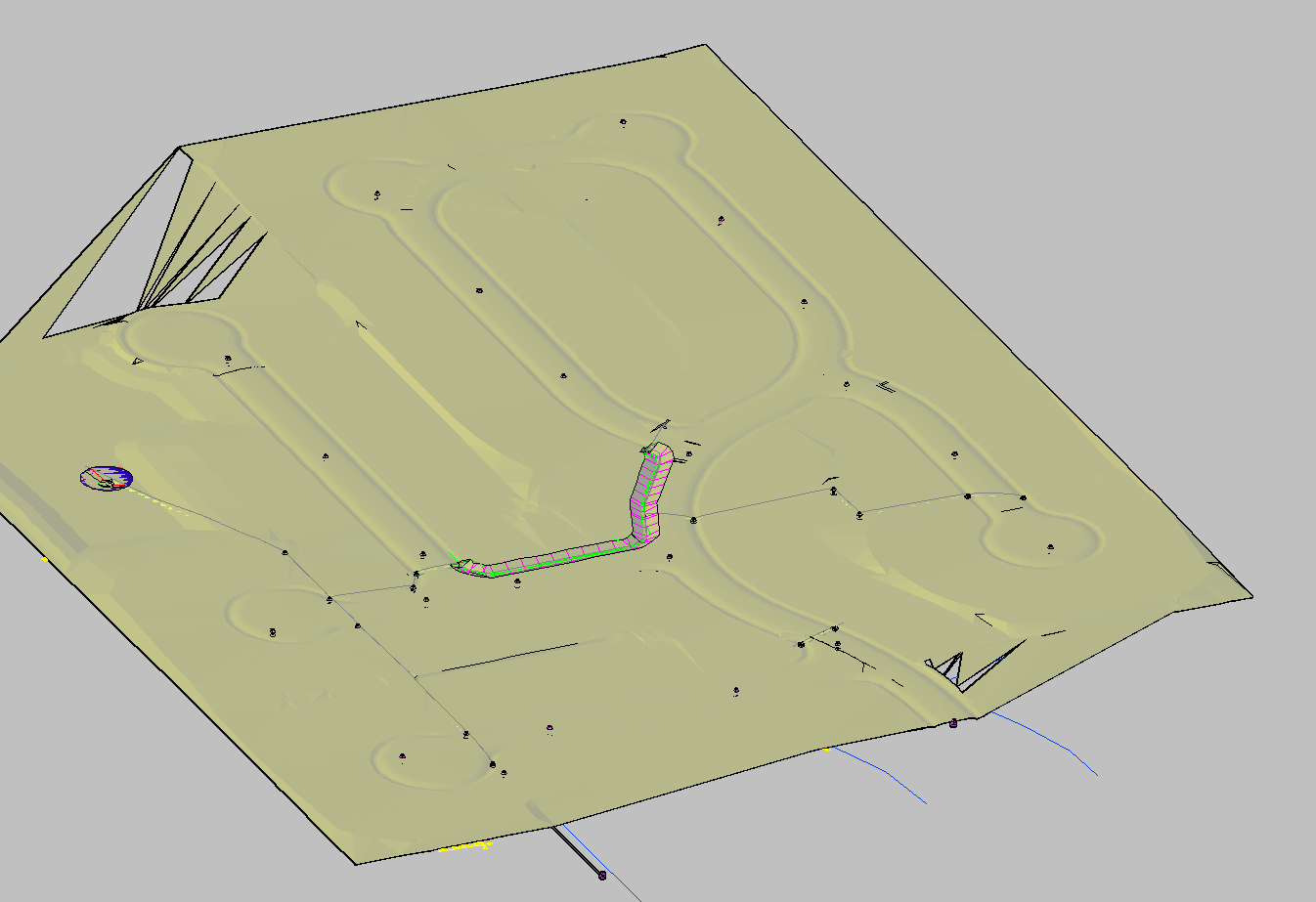

Another example showing a 3D Site.
Use the EXPORT command to create a 3D DWF. Click HERE to see an example of a subdivision model containing a design surface and pipes.
- The .DWF file is viewed in your browser using Design Review, a program installed when you installed Civil 3D.
- View the video showing how to navigate the 3D model using Design Review.
- If you do not have Design Review installed you can download a free copy.
  Design Review 2009 is now available. If you already have design review 2008 installed you will be notified that an update is available when you launch the program. This update is Design Review 2009.
- For Design Review 2009: The DGN and JT plug-ins can be downloaded from the Design Review plug-ins Web site: http://www.autodesk.com/dwf-plugins. For each plug-in, the associated README contains installation and usage instructions.
Find out what is available for DWG and DWF Viewers. Click HERE.
AutoCAD Civil 3D Resource Center Find great Tips and Tricks on Autodesk's web site.
Enable the use of MrSID and ECW files in Map with the Raster Design Object Enabler. Are your georeferenced images in the wrong coordinate system? Raster Design will reproject those images as you insert them. There is much more that Raster Design can do. Why not download a free trial.
Extracting an Image from a PDF File (6 minute movie)
See how to create an image file from a pdf file; how to change the background from white to black; how to insert the image in AutoCAD; and how to scale the image. (added 12-21-2007)
Not getting a dialog box when try to open a drawing? Type FILEDIA on the command line. If the value is set to 0 (meaning the setting is turned off) type 1 <enter> to turn on the use of dialog boxes.

Service Pack 2 for AutoCAD Civil 3D and AutoCAD Land Desktop 2008 are now available.

Service Pack (SP) 2 for AutoCAD® Civil 3D® 2008 and AutoCAD® Land Desktop 2008 can be found at the following links provided below. These are both general maintenance service packs. Please refer to the Readme files prior to applying SP2 for information on installation and resolved issues.

Actions: Get Readme files and services packs for:

AutoCAD Civil 3D software
AutoCADŽ Civil 3DŽ Land Desktop Companion 2008 uses ldc2008_sp2.exe.
AutoCADŽ Land DesktopŽ 2008 uses ldt2008_sp2.exe

Make sure you have the correct version for the service pack for Land Desktop. There are 2 different Land Desktop products and 2 different service packs.

Survey Link Extension for Civil 3D 2008

Survey Link Extension for Civil 3D 2008 is now available to Subscription Customers only. First, you must install Service Pack 2. Click HERE to get to the Subscription Login page. Under Product Information and Downloads you will find AutoCAD Civil 3D 2008 - Survey Link Extension

AutoCAD Map 3D 2008 Service Pack 1 Now Available

Service Pack 1 for AutoCAD® Map 3D 2008 software is now available for download at http://usa.autodesk.com/getdoc/id=DL10095960.

This service pack includes the improvements from the AutoCAD® 2008 service pack, along with several significant fixes specific to AutoCAD Map 3D 2008 software. With this service pack, users will find:

Improved SHP Import/Export
Enhanced Feature Data Objects (FDO) raster plot resolution
Faster performance for SDF files and publish to DWF
Display Manger stylization/theming enhancements
Better Oracle® Spatial support

Action: To download the service pack and to access a complete list of improvements, please refer to the Readme, which is also posted to http://usa.autodesk.com/getdoc/id=DL10095960.
